TN07
IRIS HPS
Introduction
TN07
IRIS HPS
Complete functions and meticulous craftsmanship | Tunnel light series
Full-featured weather-resistant tunnel light with meticulous rounded corner design and matching optical designs required for various tunnel stages, providing a choice of lamps with both design and functionality.
Specifications
- Luminaire dimension 750 x 430 x 193 mm
- Light source H.P.S 70W / 100W /150W / 250W / 400W
- MH 70W / 100W /150W / 250W / 400W
- Color temperature 2000K
- 4000K
Material
- Outer cover Die cast aluminum
- Face frame Die-cast aluminum
- Lampshade Tempered glass
- Reflector Aluminum
-
Optical design

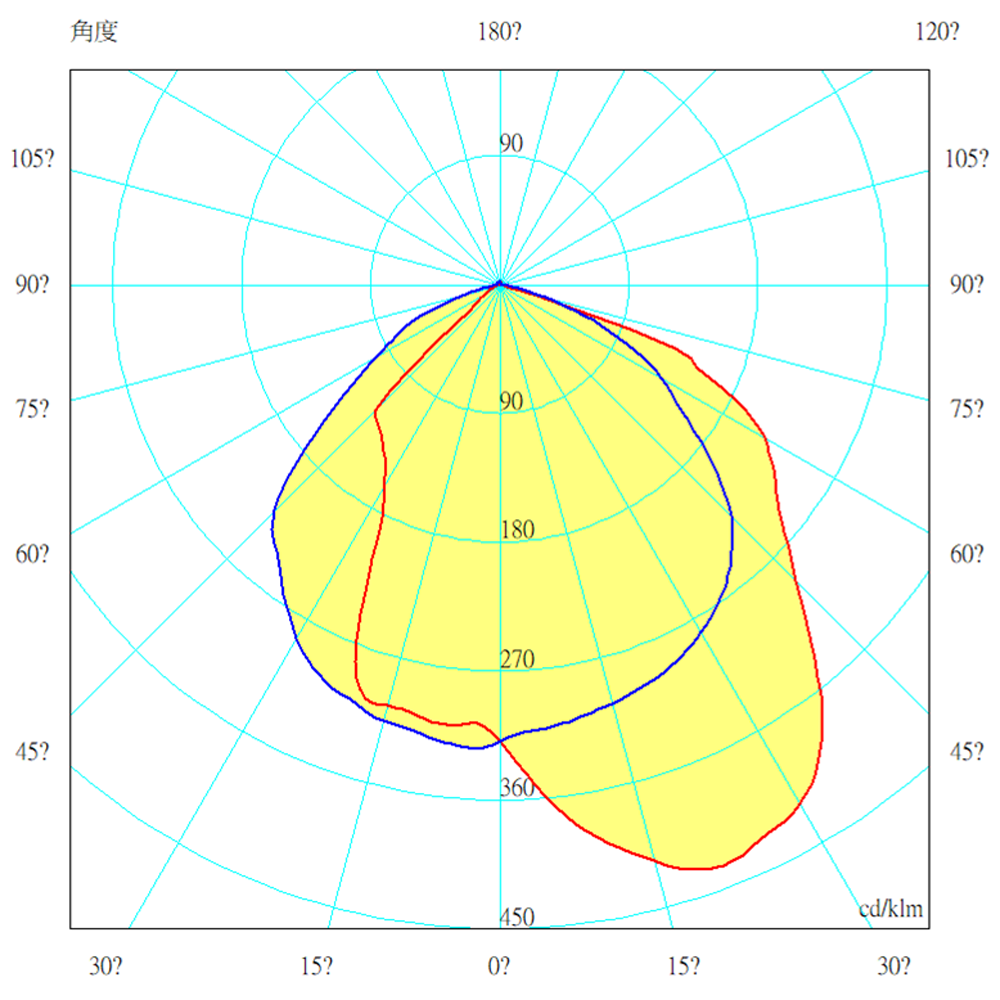

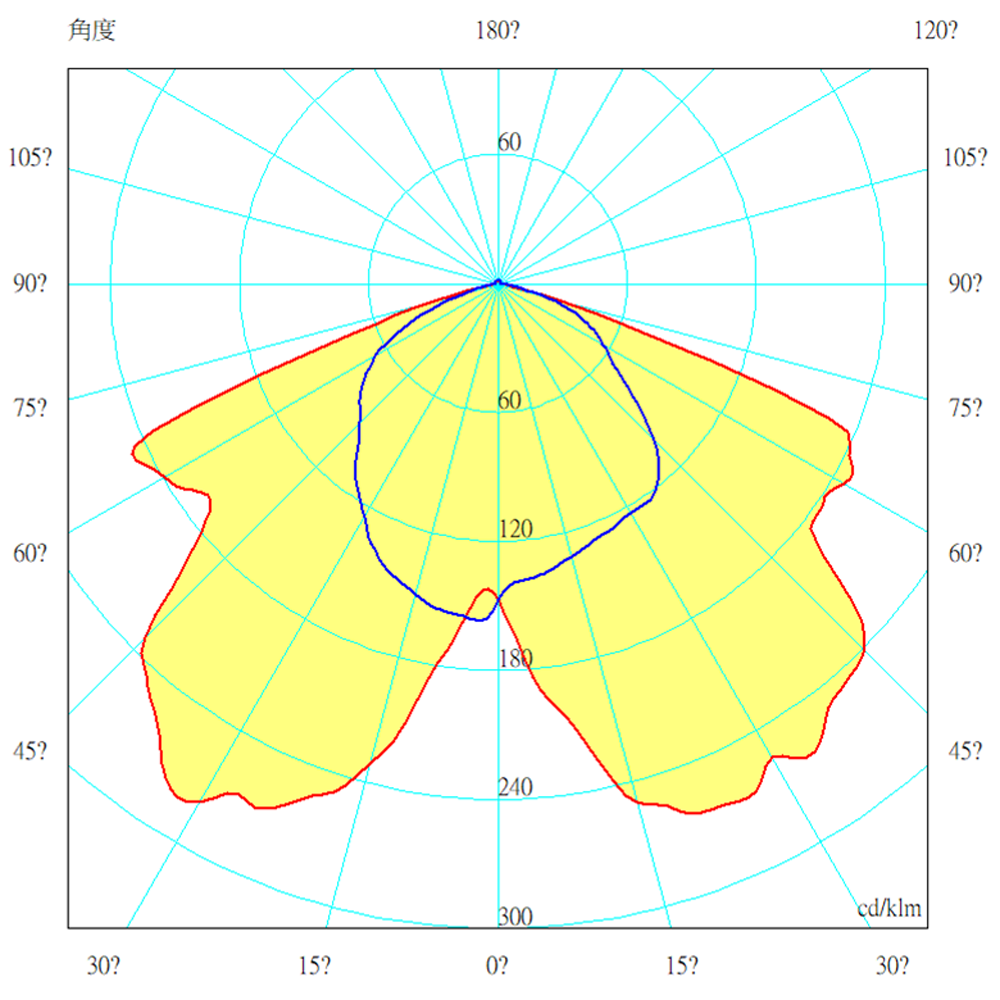

The reflective plate is made of imported high-purity aluminum material with a content of 99.5%, and has three light distribution types: symmetrical, asymmetrical and back-illuminated.
Electrical characteristics
The overall lamp meets the requirements of CNS8886 salt spray test classification number 9.8-3, and is suitable for harsh and humid climate environments such as seaside or mountainside.
High-strength safety glass meets IK08 protection level.
Installation suggestions
It is recommended to use back-illuminated lamps in the tunnel entrance area and transition area so that drivers can gradually adapt to the environment in the tunnel. Symmetrical lamps can be used in the tunnel area to maintain good uniformity in the tunnel.
The installation base of this lamp adopts an adjustable bracket, and the adjustment angle can reach 90 degrees.
