TN05

IRIS Fluro

Introduction

Introduction

TN05

IRIS Fluro

Complete functions and meticulous craftsmanship | Tunnel light series

Full-featured weather-resistant tunnel light with one-piece extruded aluminum casing, matching the different optical designs required for various tunnel stages, providing a choice of lamps with both design and functionality.

  • AC220V
  • CRI80
  • T8
  • T5
  • IK08
  • IP55
  • 3000K
  • 4000K
  • 5000K
  • 6500K

Specifications

  • Luminaire dimension 1320 x 248 x 135 mm
  • Light source T5 28W / 28W*2
  •                          T8 LED 18W / 18W*2
  • Color temperature 3000K  / 4000K / 6500K
  •                          4000K / 5000K

Material

  • Outer cover Aluminum extrusion
  • Face frame       Aluminum extrusion
  • Lampshade      Tempered glass
  • Reflector       Aluminum

Optical design

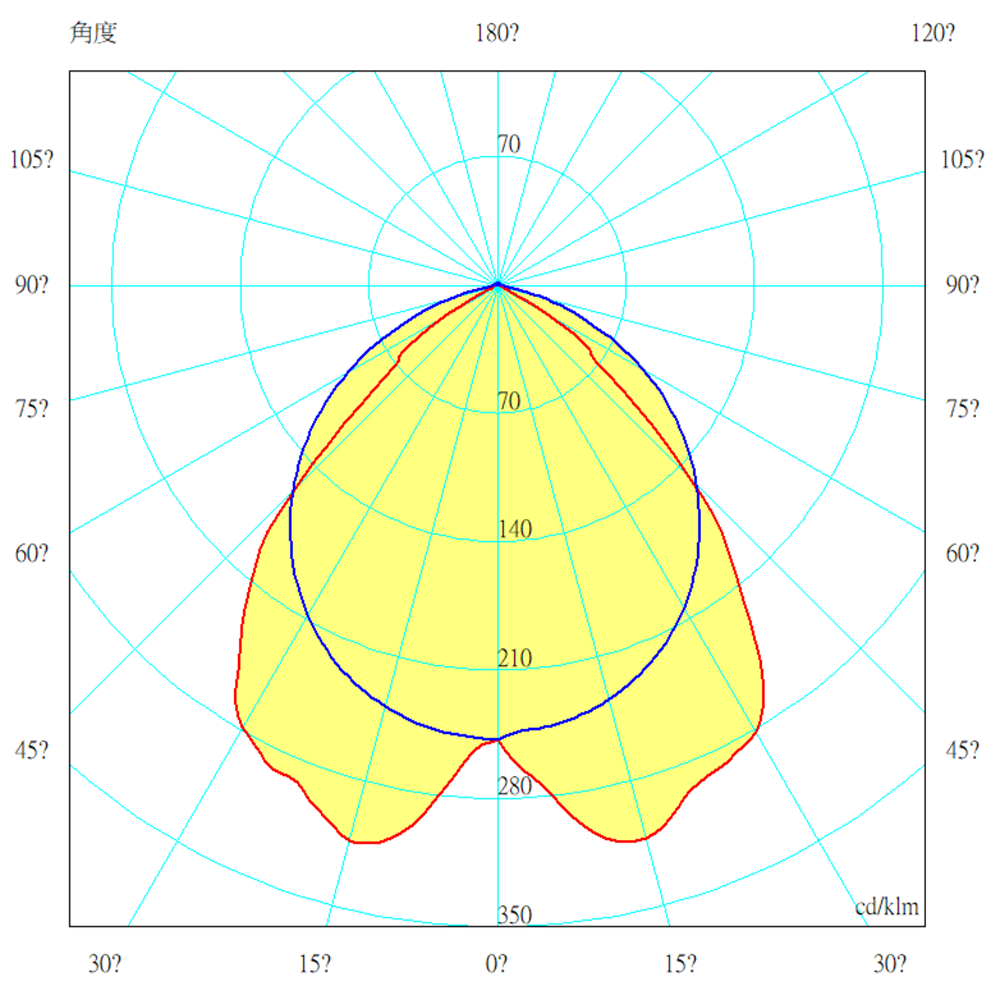

Reflective plates have two types of light distribution: longitudinal symmetry and transverse symmetry.

Electrical characteristics

High-strength tempered glass transparent lampshade, compliant with IK08 protection level.

This lamp is equipped with a dustproof and waterproof breathing regulator to ensure that it can be used in various harsh environments.

The internal leads use heat-resistant wire with a temperature resistance of over 100°.

Equipped with a one-to-one electronic ballast, the power factor is ≧ 0.95.

Protection grade IP65.


Installation suggestions

The lamps are installed with chute fixation, which is suitable for various installation environments.

Things to note

For different tunnels, the company can make appropriate corrections to the optical reflection system, aiming to meet the illumination requirements of the specifications.

Photos

TN05-photo-1

Downloads

Documents

Name

Updated date

File size

Download

  • Name

    TN05_Catalog

    Updated date

    2024-02-21

    File size

    999.6KB

    Download

Photometric file

Model number

Light source

Wattage

Color temperature

Light distribution

Download

  • Model number

    TN05

    Light source

    T5

    Wattage

    28W

    Color temperature

    4000K

    Light distribution

    SYM

    Download
  • Model number

    TN05

    Light source

    T5

    Wattage

    28W*2

    Color temperature

    4000K

    Light distribution

    SYM

    Download
