QL64
Eco Friendly Street Lights
Introduction
QL64
Eco Friendly Street Lights
-
Technology Black
-
warship gray
-
Barley White
-
minimalist white
Eco-friendly curved appearance | Low glare series
This product is an eco-friendly lamp with a luminous efficiency of 100 Lm/W. Its special 3000K has effectively removed the blue light wavelength, eliminating blue light hazards and greatly reducing the ecological impact. Suitable for any area that needs to be eco-friendly, such as ecological trails and wetland parks.
Specifications
- Luminaire dimension 490 x 280 x100 mm (30W / 60W)
- 548 x 280 x100 mm (90W / 120W)
- 620 x 280 x100 mm (150W)
- Light source LED 30W / 60W / 90W / 120W / 150W
- Light flux ≧ 3000 Lm / ≧ 6000 Lm / ≧ 9000 Lm / ≧ 12000 Lm
- ≧ 15000 Lm
- Color temperature 3000K
Material
- Lamp body Die cast aluminum
- Lampshade Tempered glass
-
Optical design
LED is a directional light source that can effectively control spilled light and upward glare. This lamp can achieve an artificial light environment that is in harmony with the ecology and nature through dimming and timely control.
Two-directional blocking type and two-directional semi-blocking A-type light distribution.
Electrical characteristics
The power supply is built into the lamp or can be placed externally at the lamp pole maintenance area for easy maintenance.
The power supply provides LED positive and negative short circuit and open circuit protection.
The power supply is equipped with over-voltage surge protection device, surge protection 10KV/20KV.
Automatic over-temperature protection device, when the power supply Tc temperature exceeds 90 degrees, it will automatically reduce the load to zero output for over-temperature protection.
Internal level design.
The lamp can be adjusted up and down by ±15°.
Protection grade IP65.
Installation suggestions
Suitable for any area that needs to be eco-friendly, such as ecological trails and wetland parks.
The height of the light pole is recommended to be 8~12M.
Can be installed vertically or horizontally.
Things to note
Lamp pole fixing Ø60mm horizontally and Ø60mm vertically.

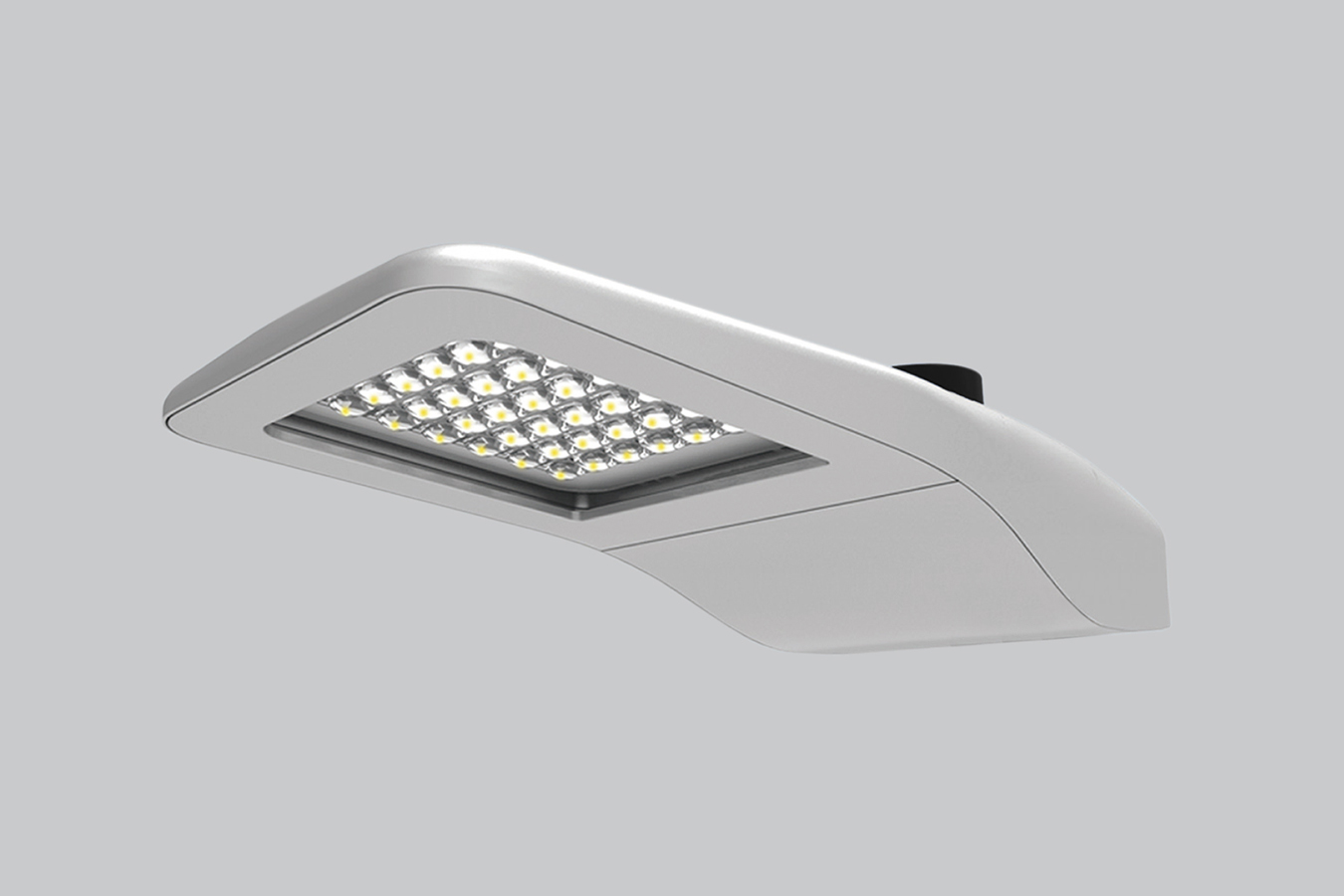

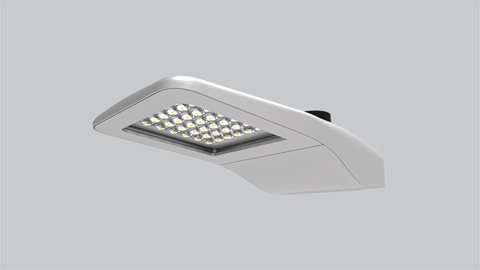

Photos
