PA03

BURIED LIGHTS

Introduction

Introduction

PA03

BURIED LIGHTS

Sturdy and durable asymmetric lighting｜ Floodlight series

Asymmetrical energy-saving LED lamps, with a special ground-type design, provide uniform and non-glare building facade lighting and are the best choice for lighting design planning.

  • AC110V
  • AC220V
  • CRI75
  • LED
  • IP66
  • 4000K

Specifications

  • Luminaire dimension Ø400 x 200 mm
  • Light source LED 21W
  • Light flux ≧ 2000 Lm
  • Color temperature 4000K

Material

  • Lamp body Die cast aluminum
  • Lampshade        Tempered glass
  • Cover        Stainless steel
  • Embedded box          Stainless steel

Optical design

Asymmetric light distribution.

Electrical characteristics

Protection grade    IP66。

Installation suggestions

Suitable for building facade lighting.

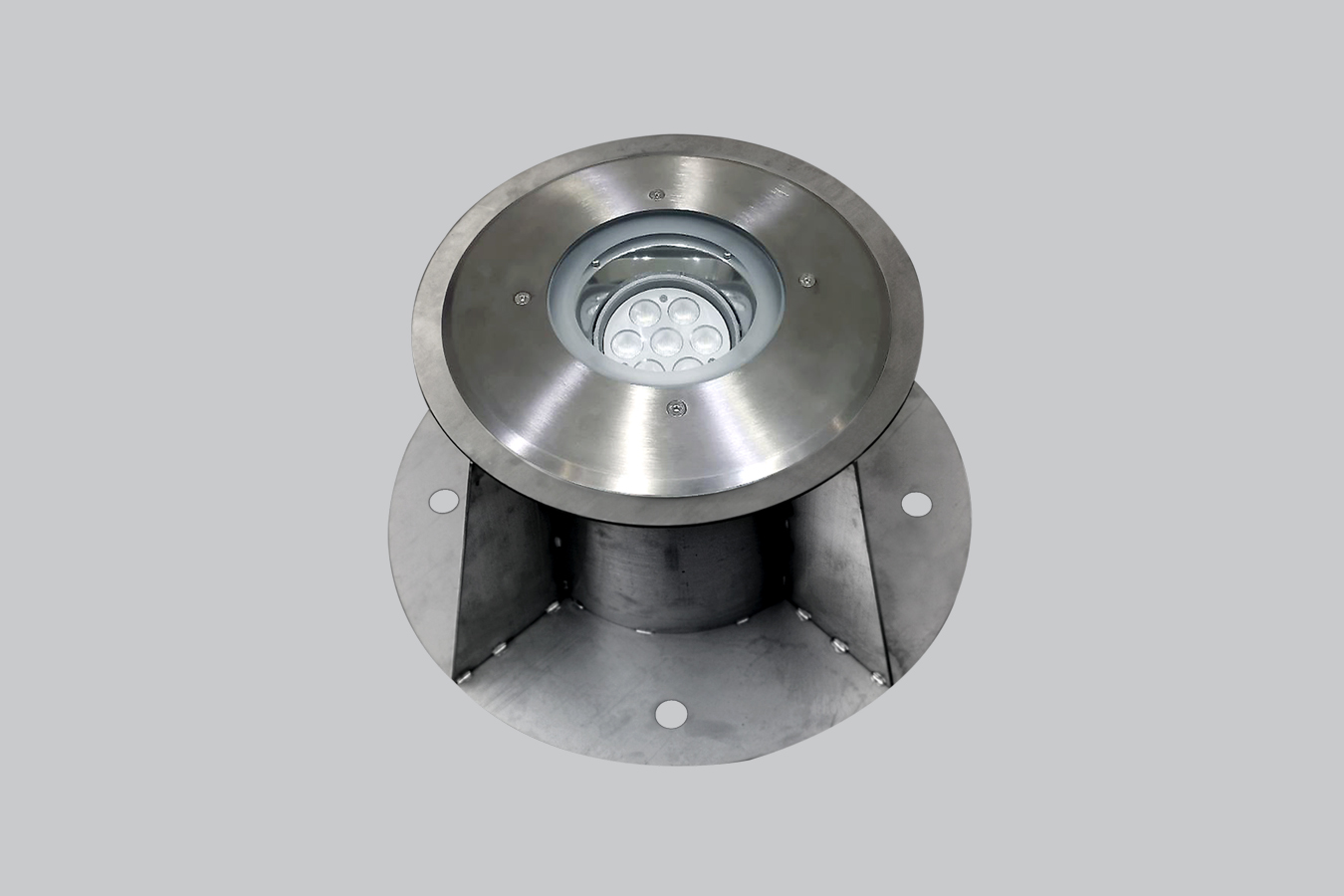

Photos

Downloads

Documents

Name

Updated date

File size

Download

  • Name

    PA03 Catalog

    Updated date

    2024-07-17

    File size

    586.4KB

    Download

Photometric file

Model number

Light source

Wattage

Color temperature

Light distribution

Download

  • Model number

    PA03

    Light source

    LED

    Wattage

    21W

    Color temperature

    4000K

    Light distribution

    非對稱型

    Download
