JR14
GOBO
Introduction
JR14
GOBO
Diversified ink lighting effects and patterns｜GOBO pattern lamp series
360° rotating projection pattern light effect, different pattern effect lamps can be replaced according to needs. The lamps can be installed standing, ceiling-mounted or wall-mounted, and are equipped with adjustable rotating brackets to flexibly adjust to different installation situations. They are the best option for improving the quality of public facilities and landscape lighting.
Specifications

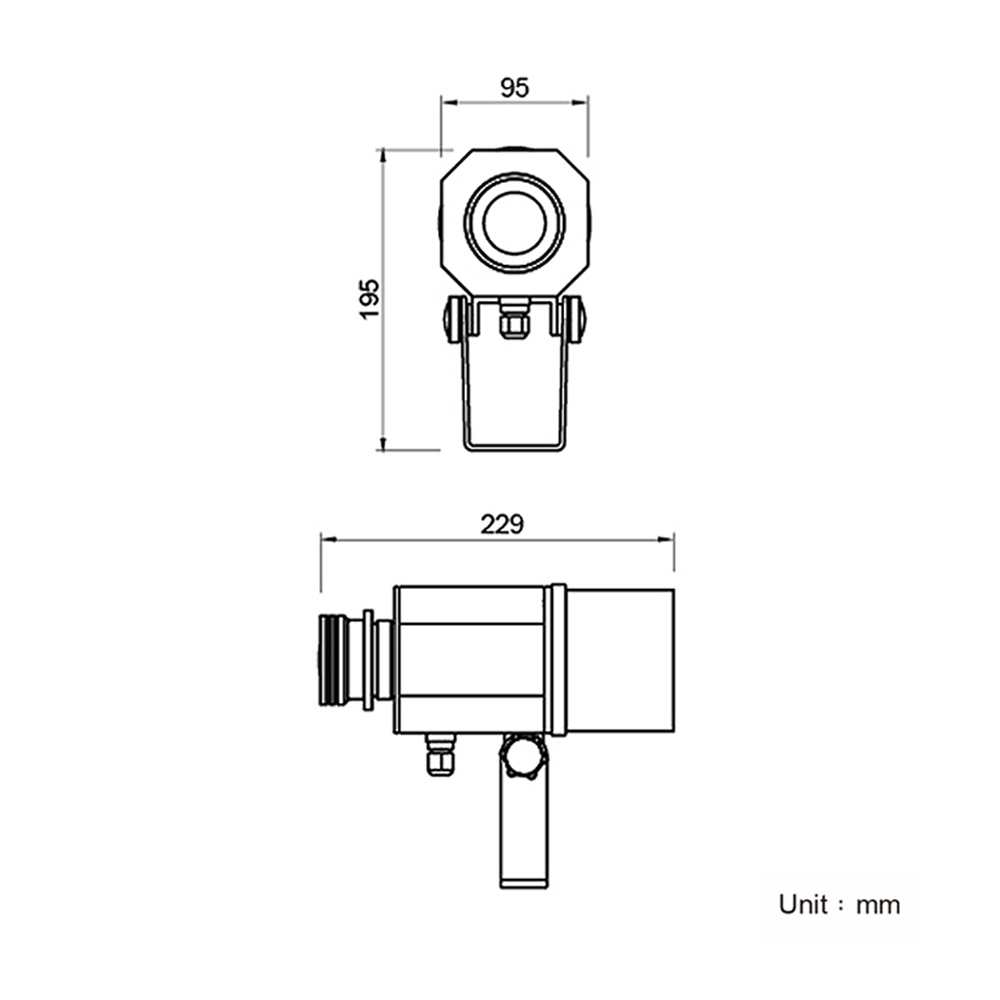

- Luminaire dimension 229 x 95 x 195 mm
- Light source LED 25W
- Color temperature 6500K
Material
- Lamp body Aluminum alloy
- Bracket Weather-resistant steel
Lamp features
Built-in projection pattern light sheet, which can be rotated 360 degrees or manually replaced.
A variety of pattern light sheets are available.
Built-in fan and exterior fin design to facilitate heat dissipation.
Professional products developed for the cultural tourism market, theme parks, characteristic towns, live performances, bridge piers and other places.
Electrical characteristics

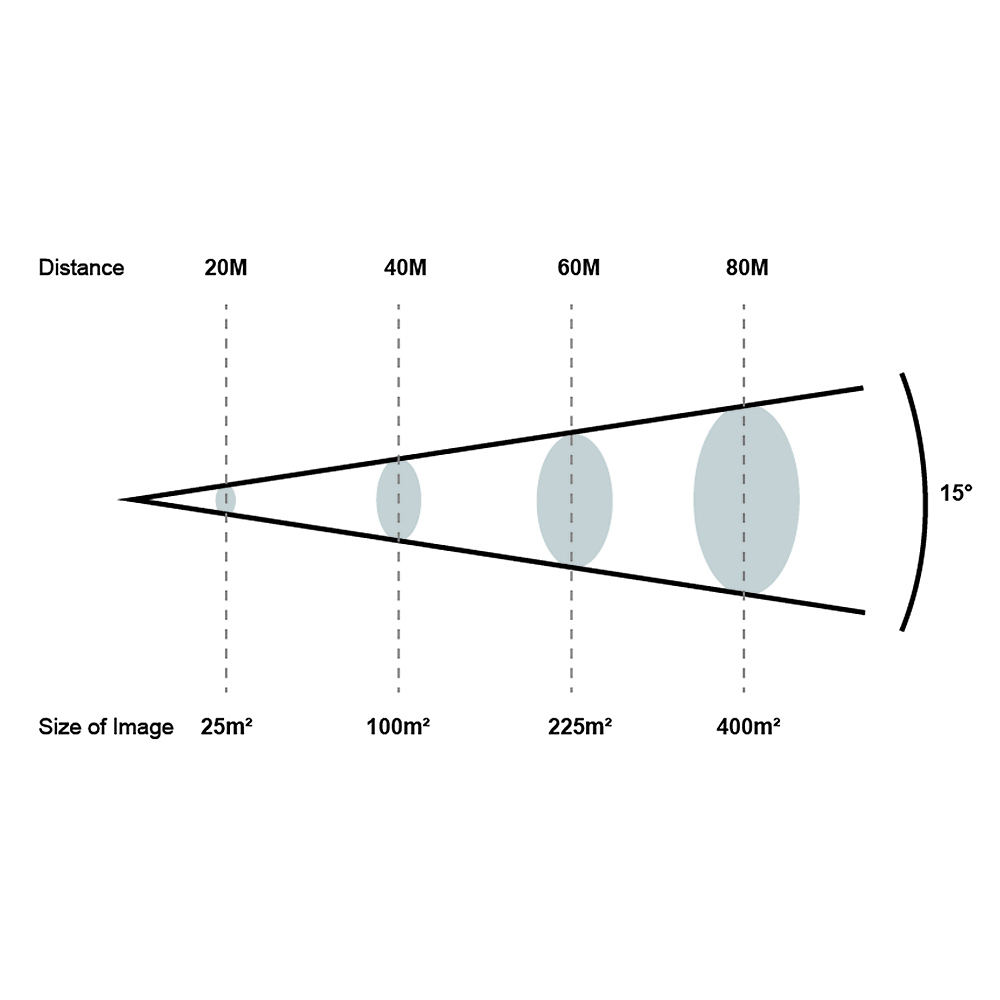

Optical design
Beam angle 20°±5°
Lighting angle 30°±5°
Installation method
Wall installation/standing installation/ceiling installation/pole installation

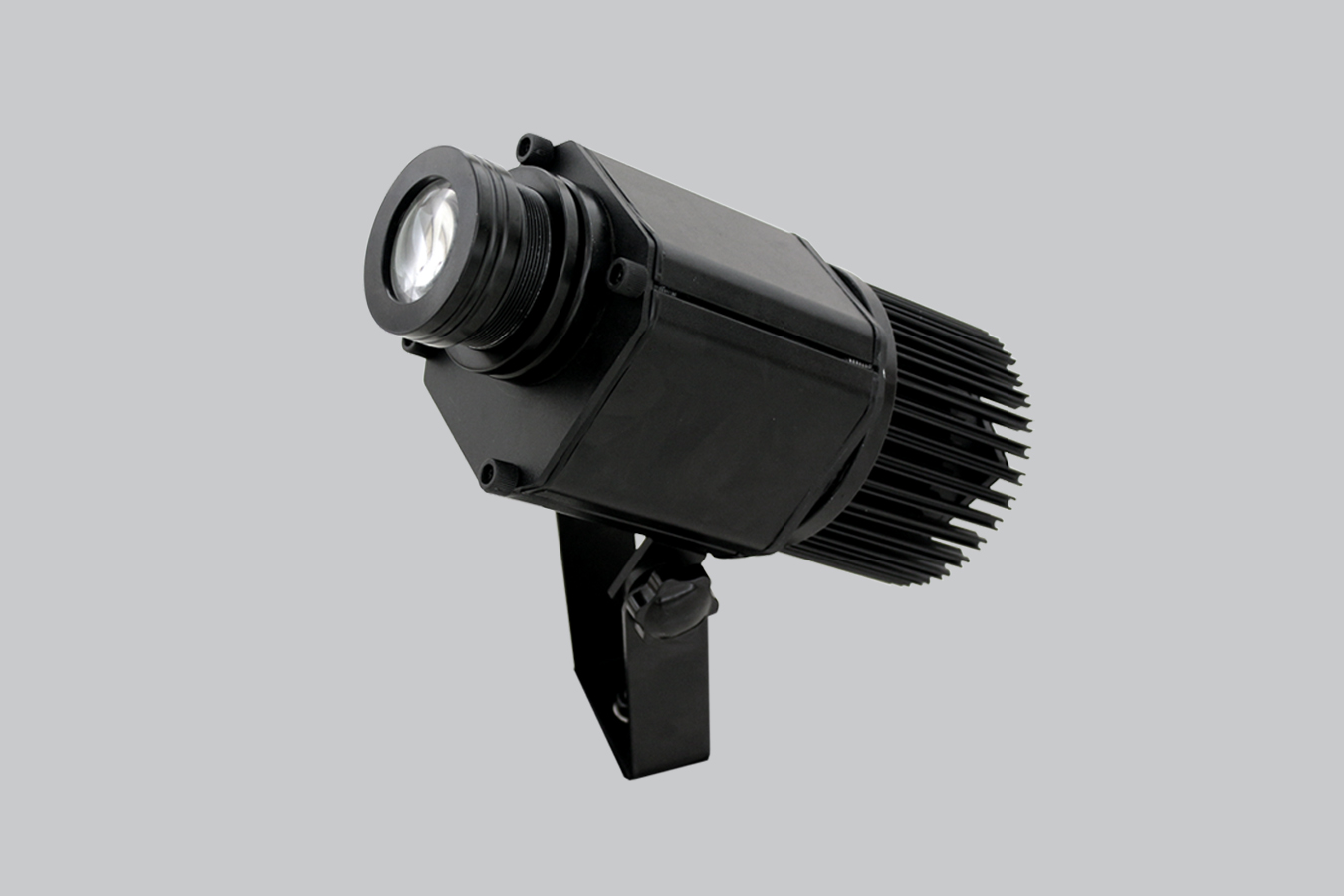

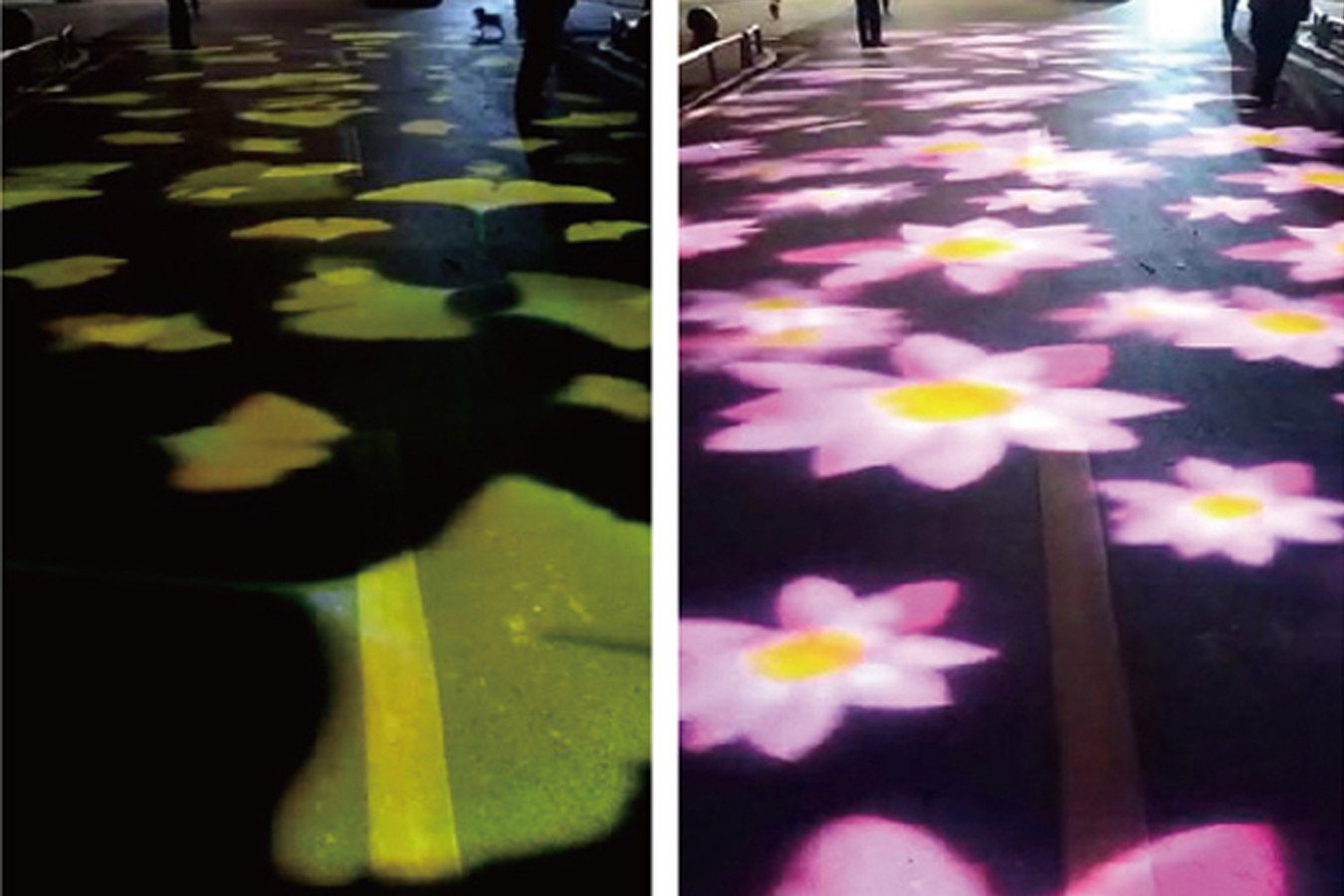

Photos
References
