BB7S
I-MAGO
Introduction
BB7S
I-MAGO
Anti-glare design, full-circle light | Full-circle light series
A low lamp with a strong sense of transparency and a unique optical design that effectively guides light to the ground and improves lighting efficiency. It can be used for lighting in atrium landscapes, park trails, recreational areas and public squares.
Specifications

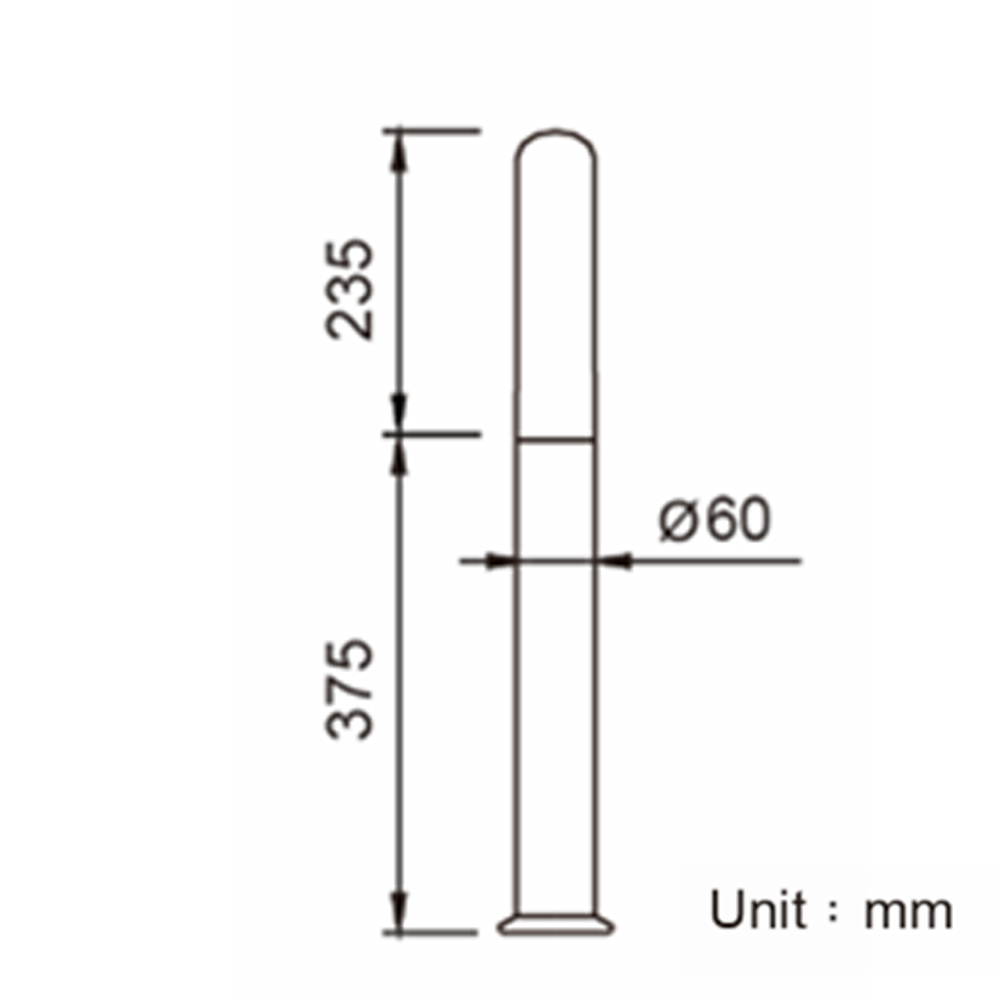

- Luminaire dimension Ø60 x 610mm
- Light source LED 5W
- Light flux ≧ 390 Lm
- Color temperature 3000K / 4000K
Material
- Lamp body Die-cast aluminum
- Lampshade Clear polycarbonate
- Protection grade IP65

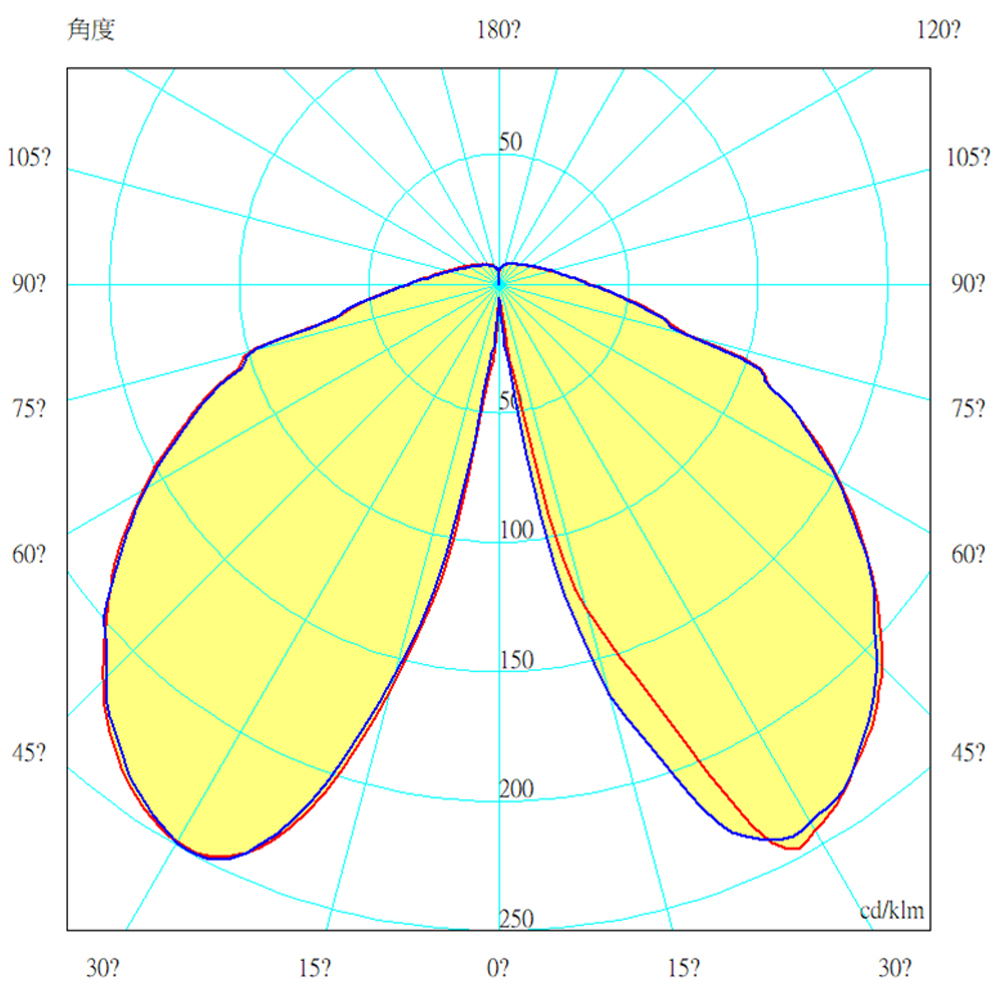

Optical design

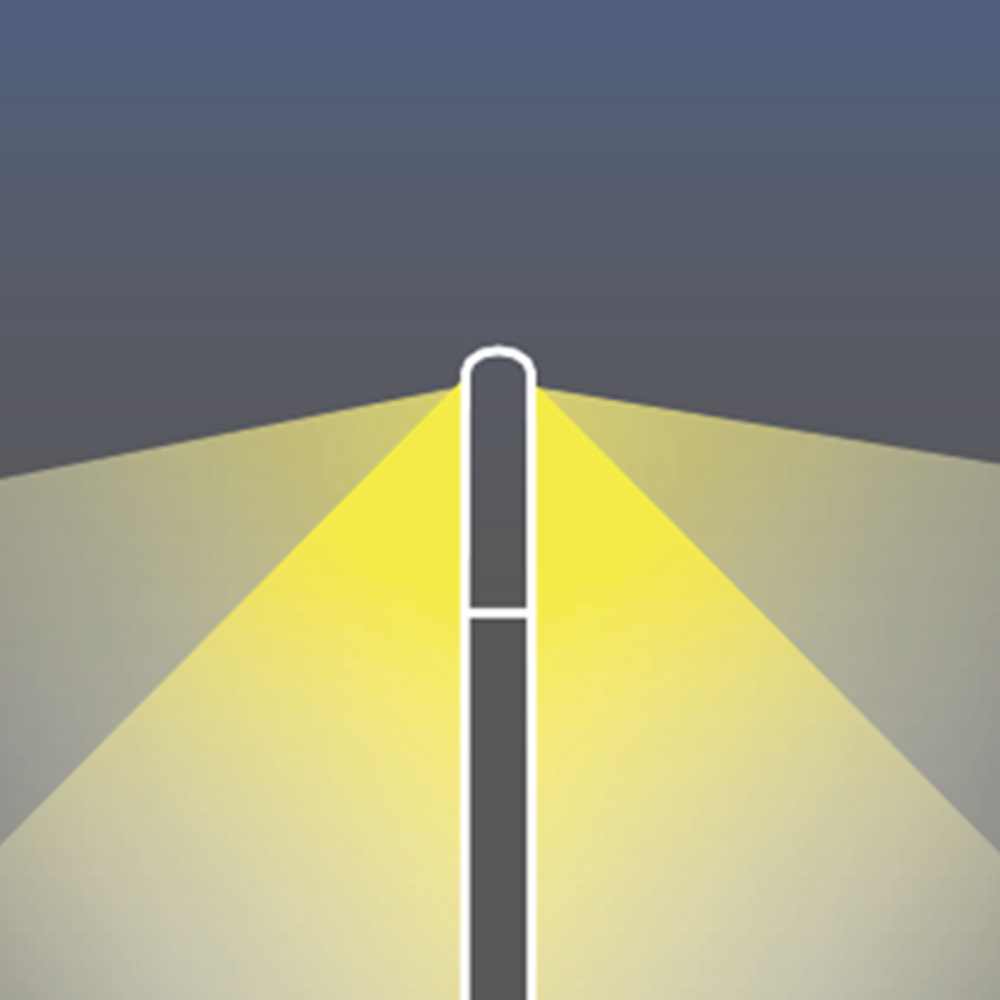

The top is equipped with an anti-glare device, which can effectively guide light to the ground and avoid upward glare.
The full-perimeter light design scatters evenly to create a lighting atmosphere.
Electrical characteristics
Protection grade IP65.
Working temperature range -20 degrees Celsius ~ 70 degrees Celsius.
Installation suggestions
t can be used in atrium landscape, park trails, leisure park lighting and public square lighting.
Things to note

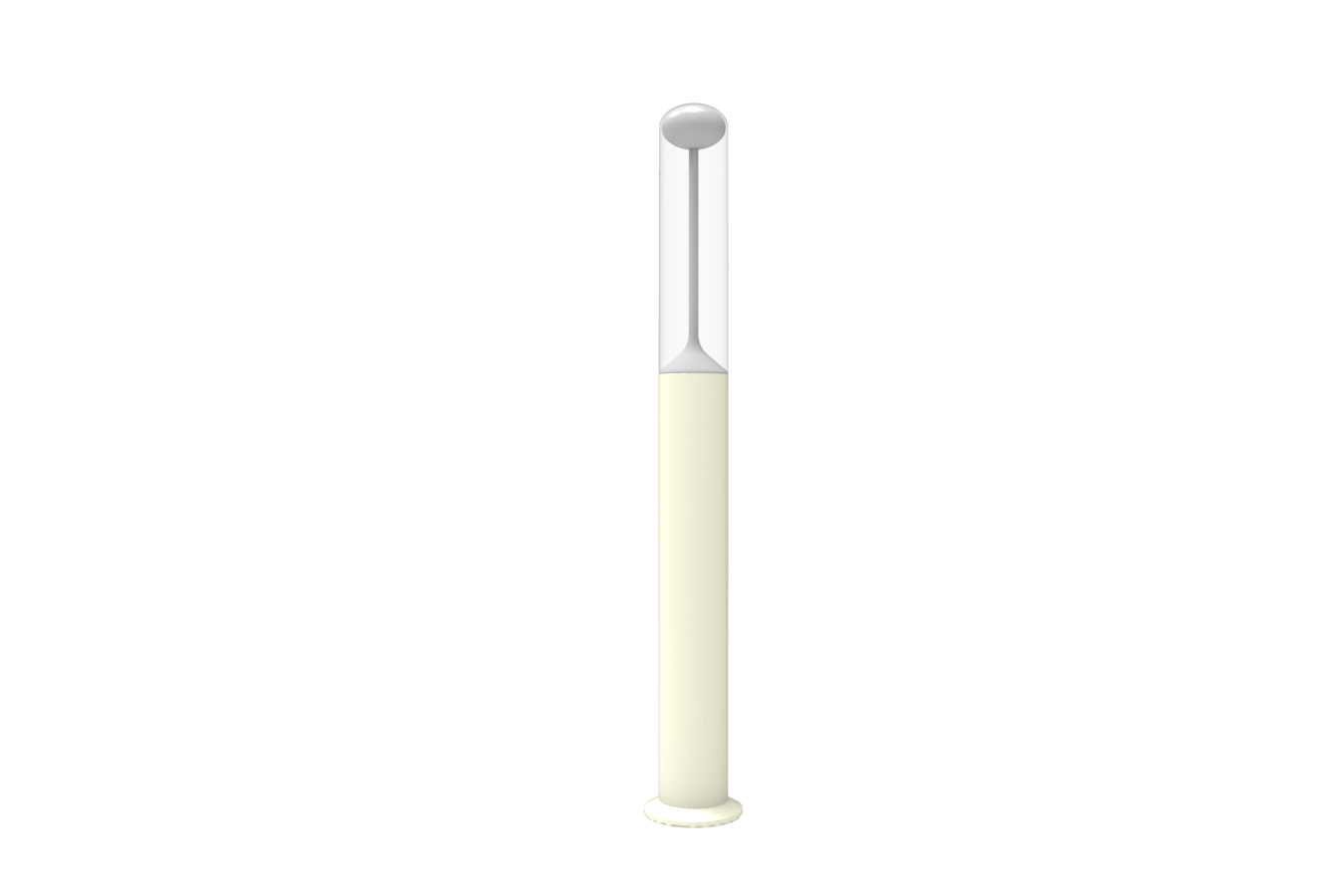

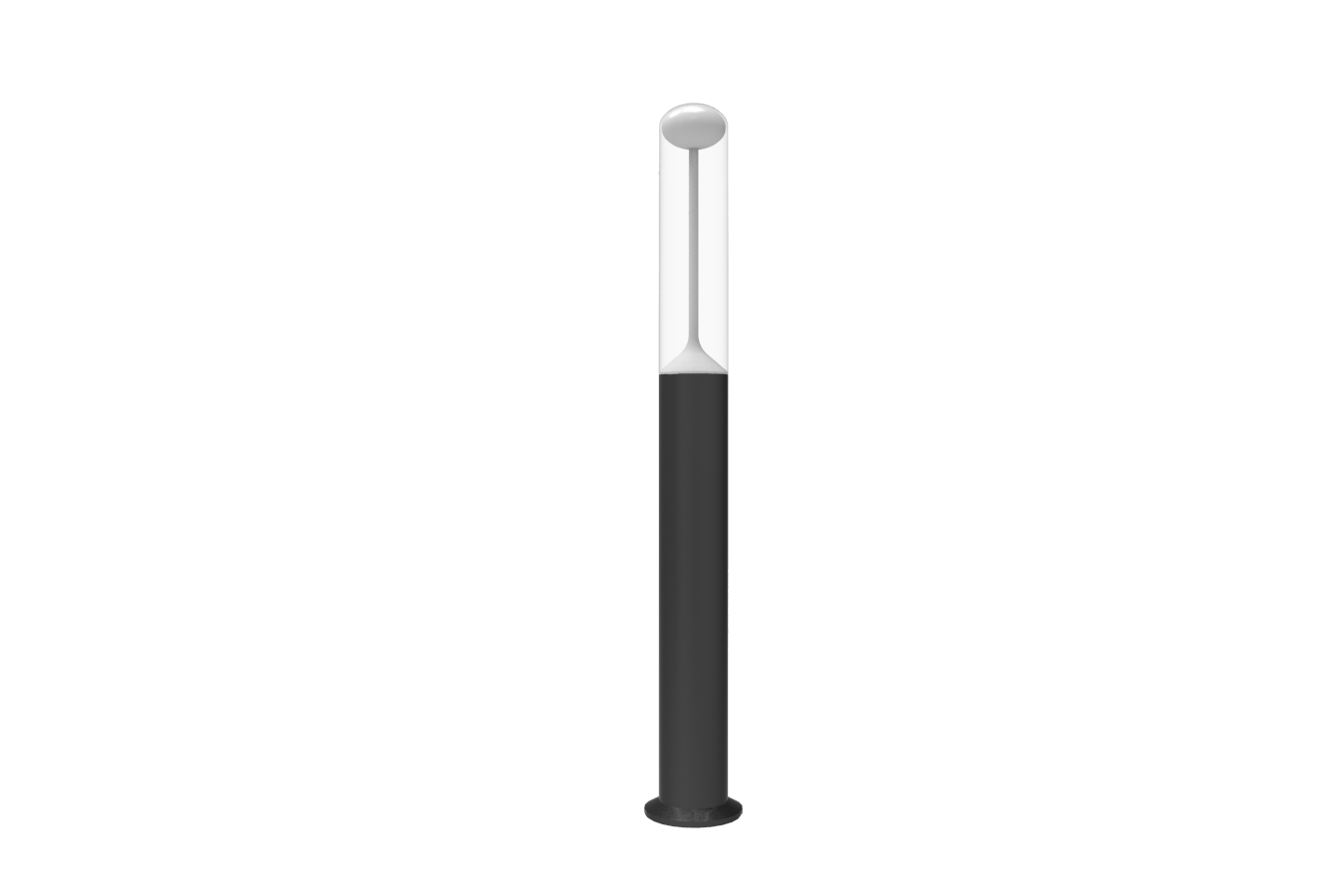

Standard colors: Technology black/warship gray/minimalist white/barley white.
